This page provides pictures and advice to help you find the OBD port on which your IIDTool/EASControl must be connected. Click on the label corresponding to your vehicle to see the information.

Range Rover L322 2002-2006

On Range Rover L332 2002-2006, the OBD connector can be found on the lower dash panel, at the position indicated by the arrow on the first picture. The connector is shown on the second picture. Open cover to access the connector.

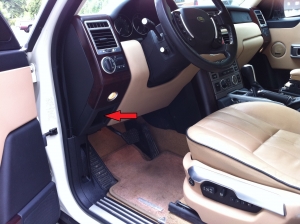

RR2005_GlobalView
The connector is in the hole near the tip of the arrow

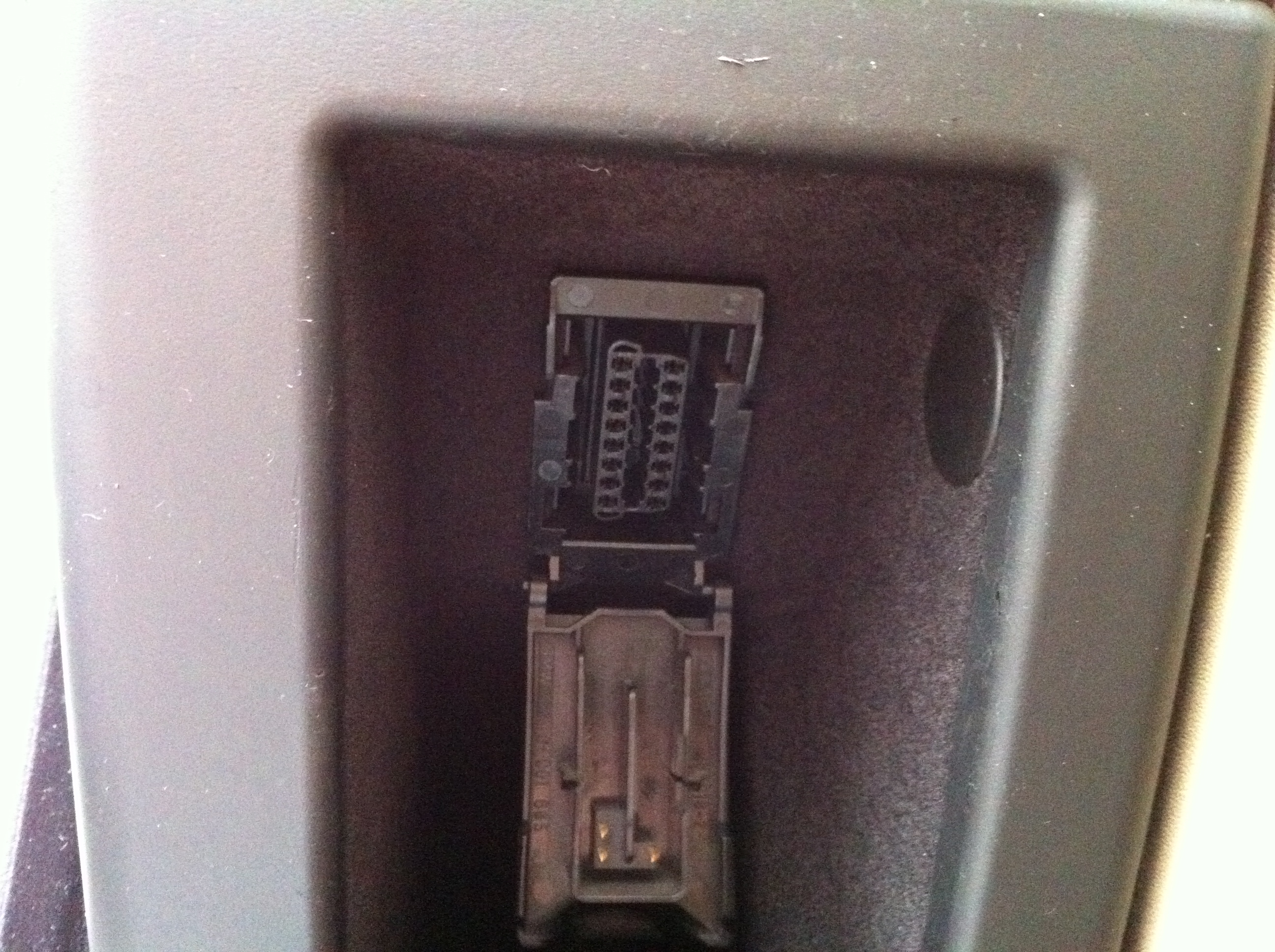

RR2005_OBD2
Close-up view of the OBD connector with its cover open

Range Rover L322 2007-2012

On Range Rover L332 2007-2012, the OBD connector can be found under the dash. The area is indicated by the arrow on the first picture. The connector is shown on the second picture. Open cover to access the connector.

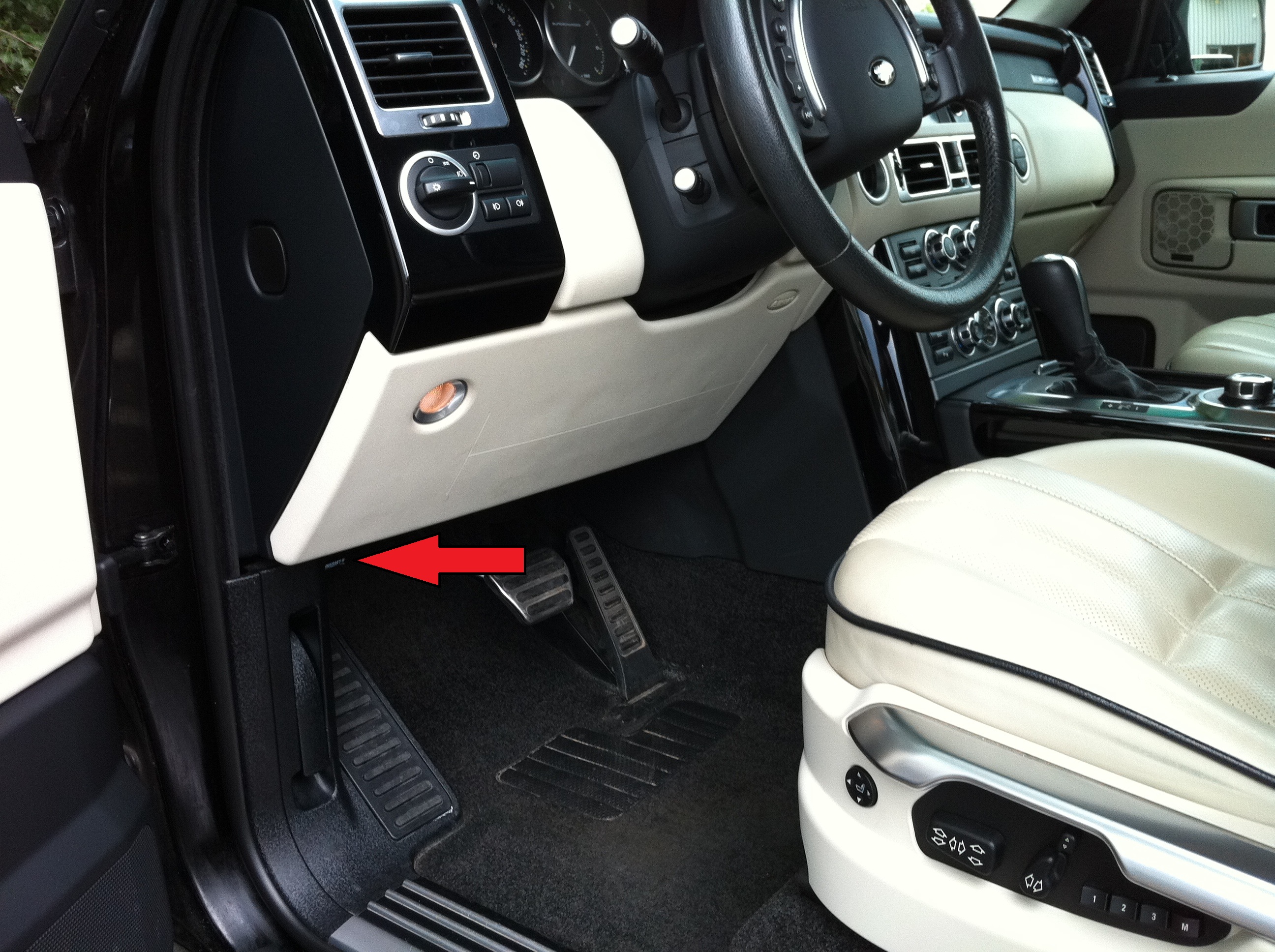

RR2007_GlobalView
The OBD connector is on bottom dash panel

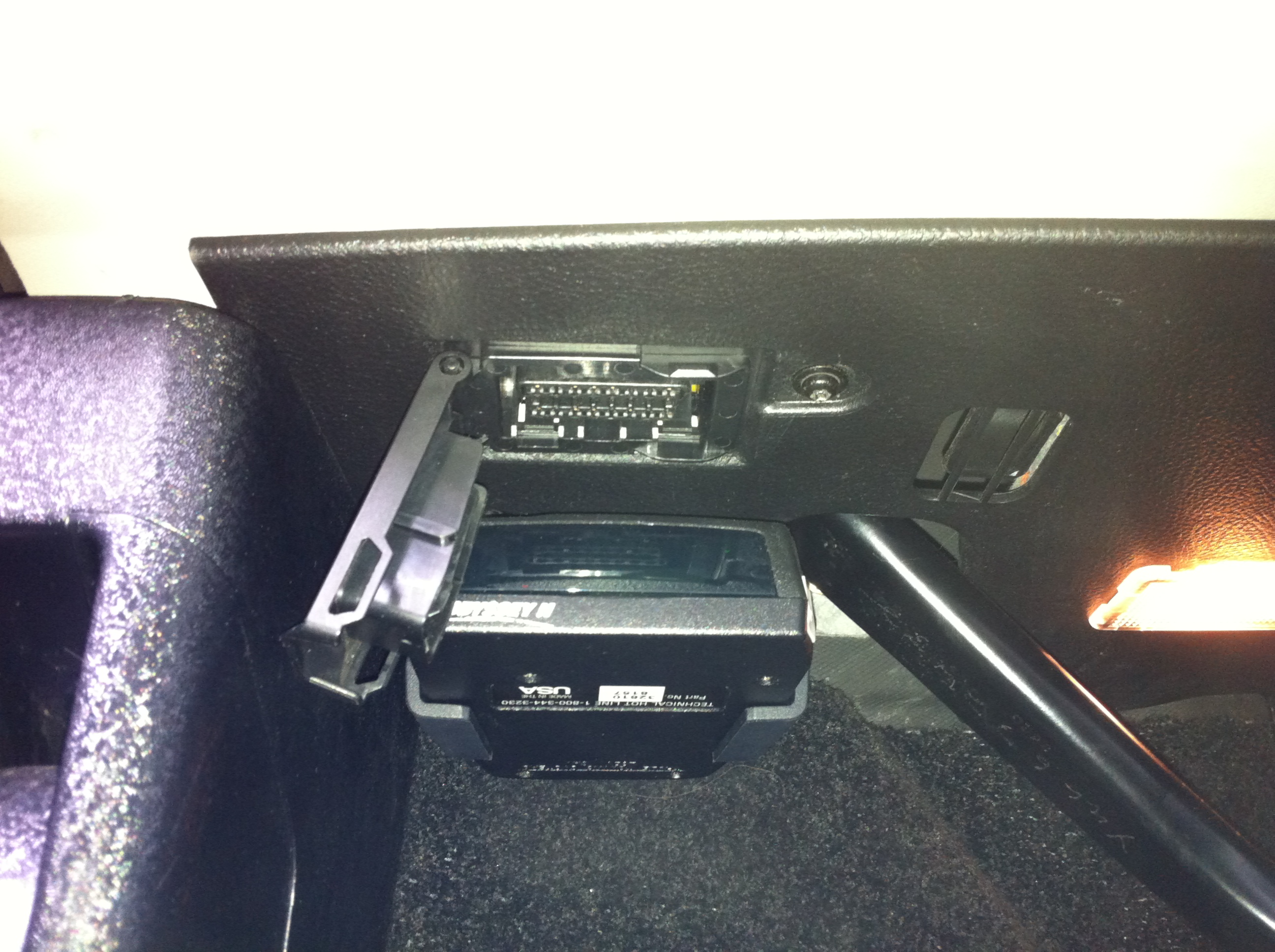

RR2007_OBD2
Close up view of the OBD connector with its cover open

Defender 2007-2015

The OBD connector is located at the driver side fuse box. Hinged cover must be opened for access.

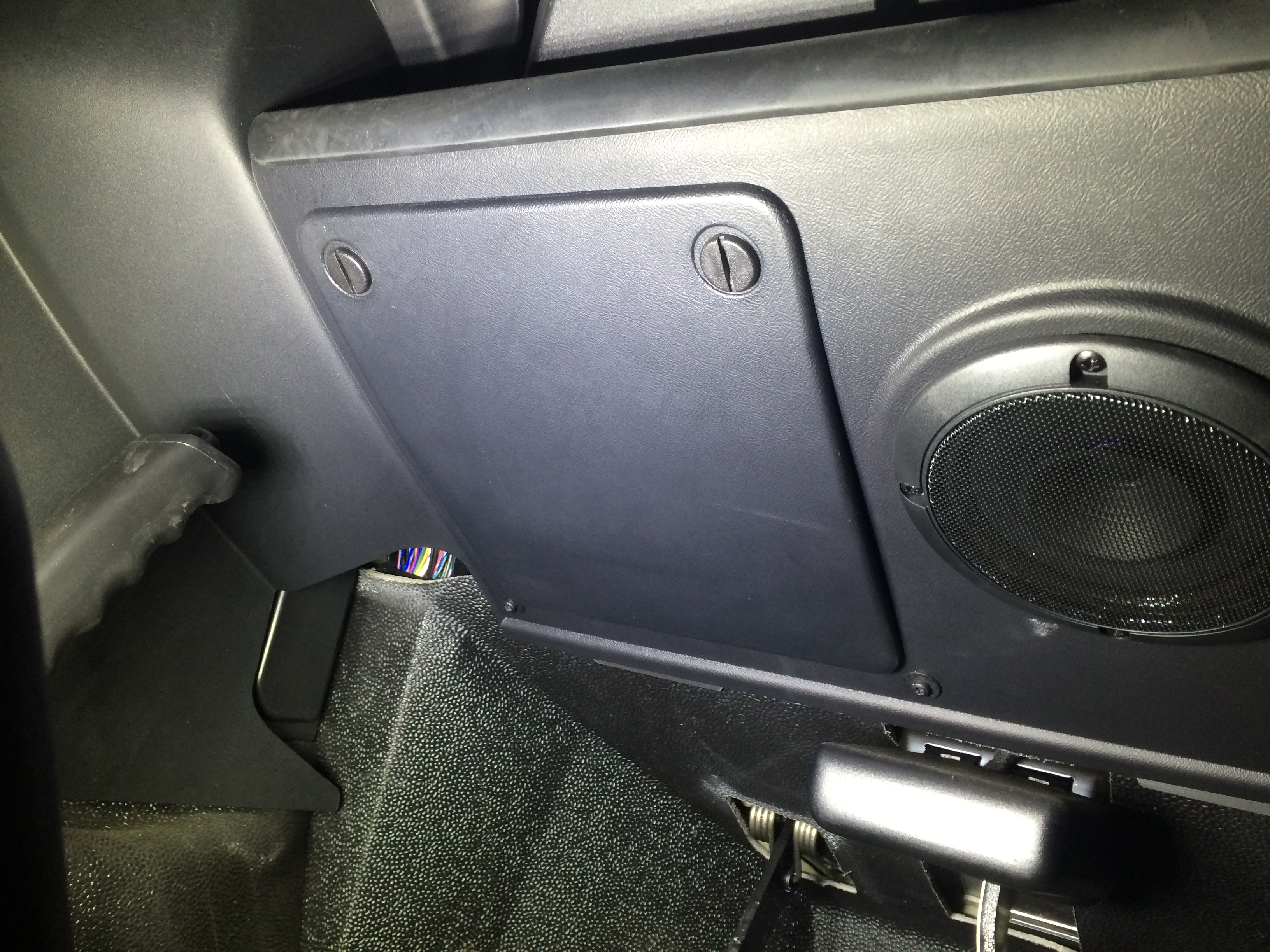

Defender OBD 1
Open the driver side fuse holder cover

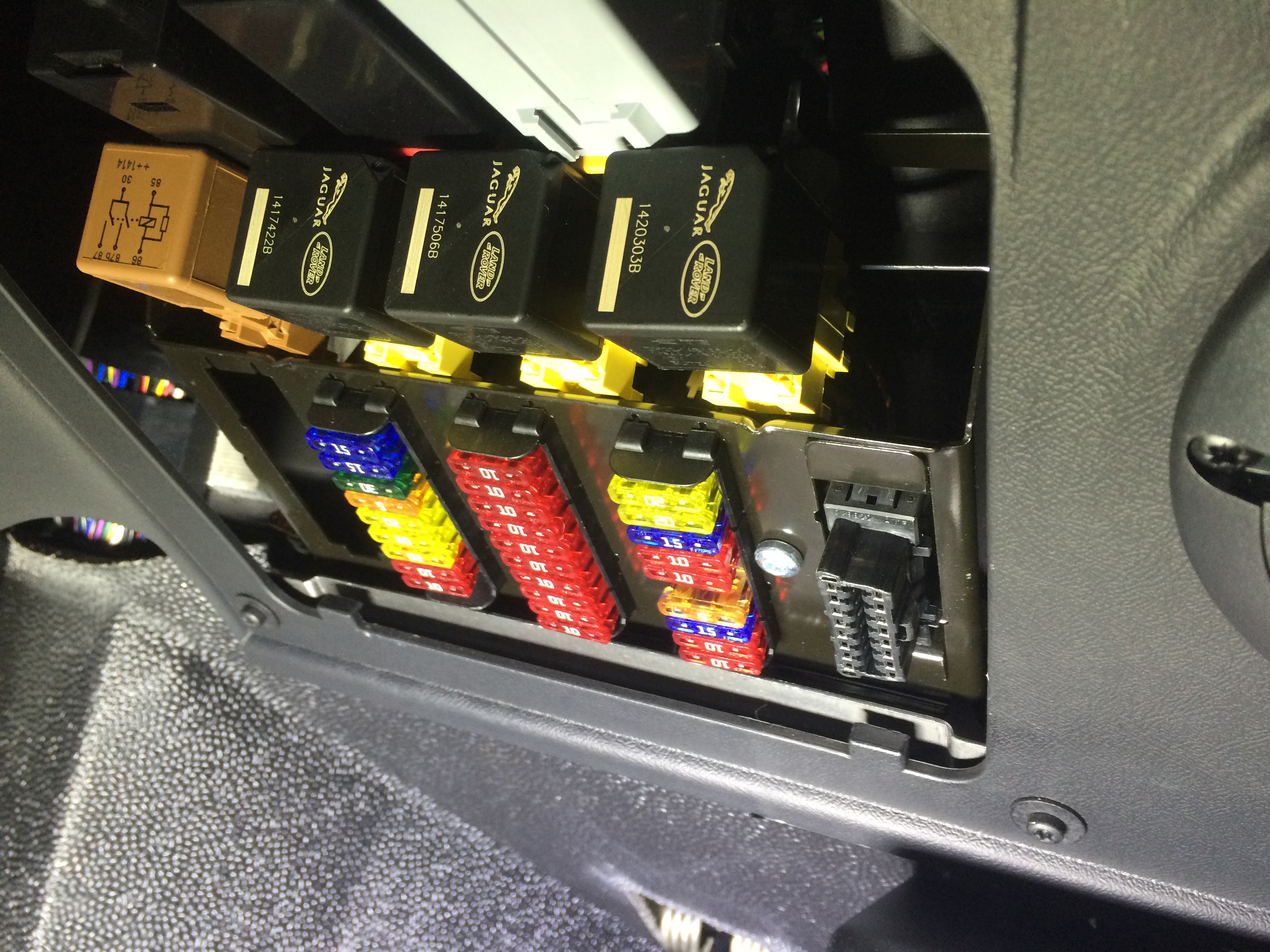

Defender OBD 3
Close up view of the OBD connector

All other supported vehicles

The OBD connector can be found under the dash. The area is indicated by the arrow on the first picture. The connector is shown on the second picture.

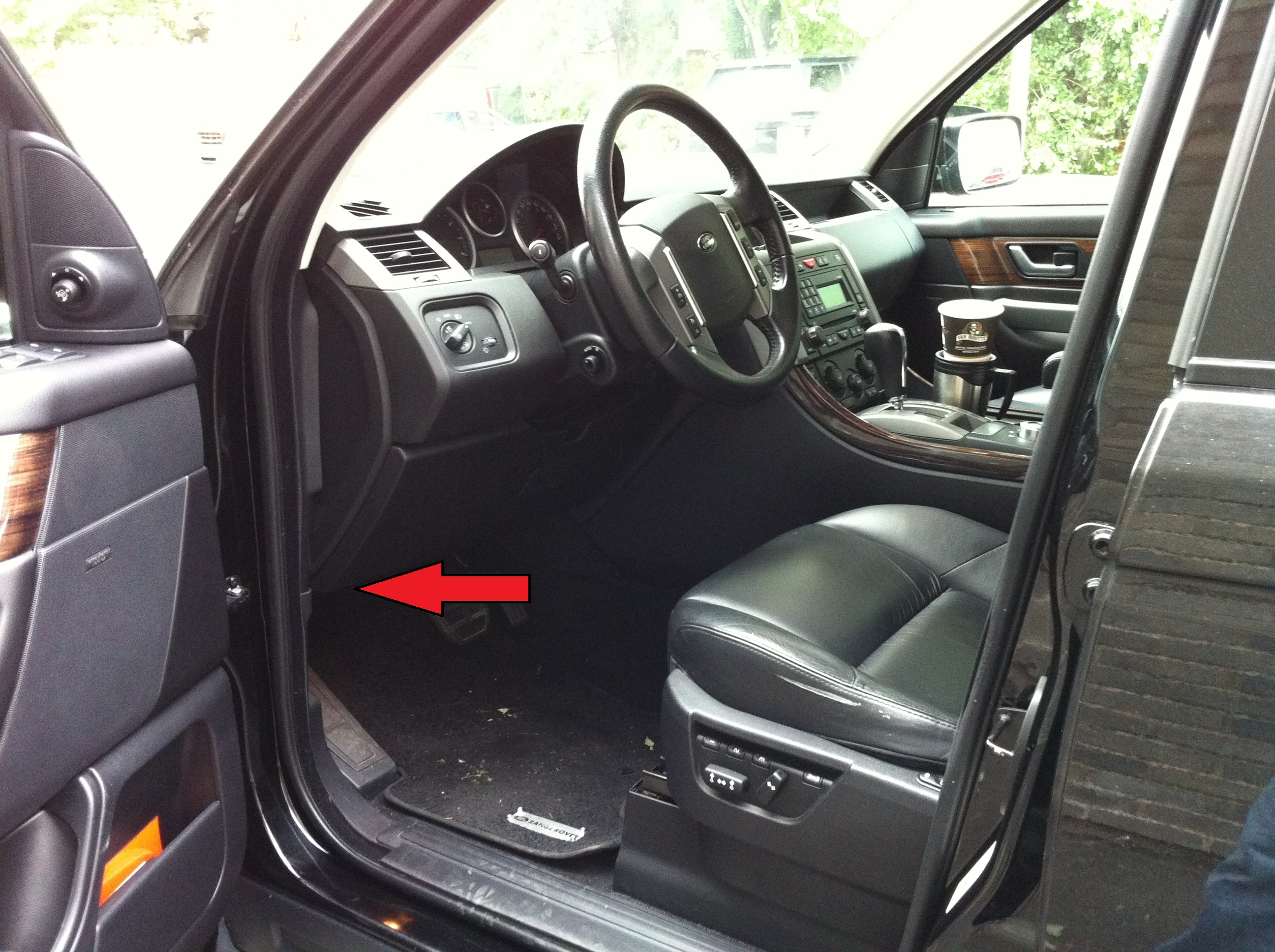

RRS2008_GlobalView
The OBD connector is on bottom dash panel

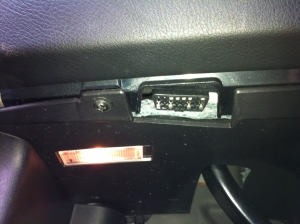

RRS2008_OBD2
Close up view of the OBD connector
