IIDTool-Doc

A powerful diagnostic system (also called scan tool or code reader) in miniature format

Available with a Bluetooth Smart module for added functionality

Interfaces

Integrated Interface

Range-Rover-Cluster-Integrated-InterfaceFor use, the IIDTool is simply plugged into the vehicle’s OBD port. The cruise control buttons are used to enter and navigate the menu while information is displayed on the instrument cluster display. This interface is not available on all vehicles. The integrated interface cannot be used if the cruise control buttons or instrument cluster screen is defective (pixel problems for example). An IIDTool BT used with a mobile device will be the correct solution in these cases.

Mobile App interface

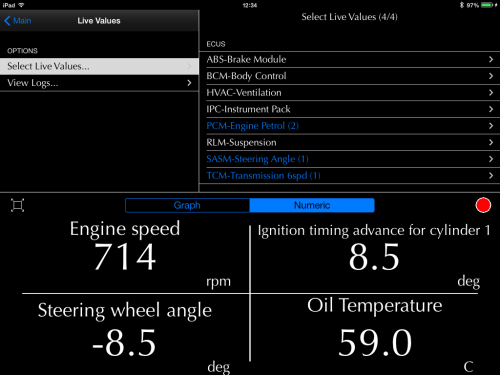

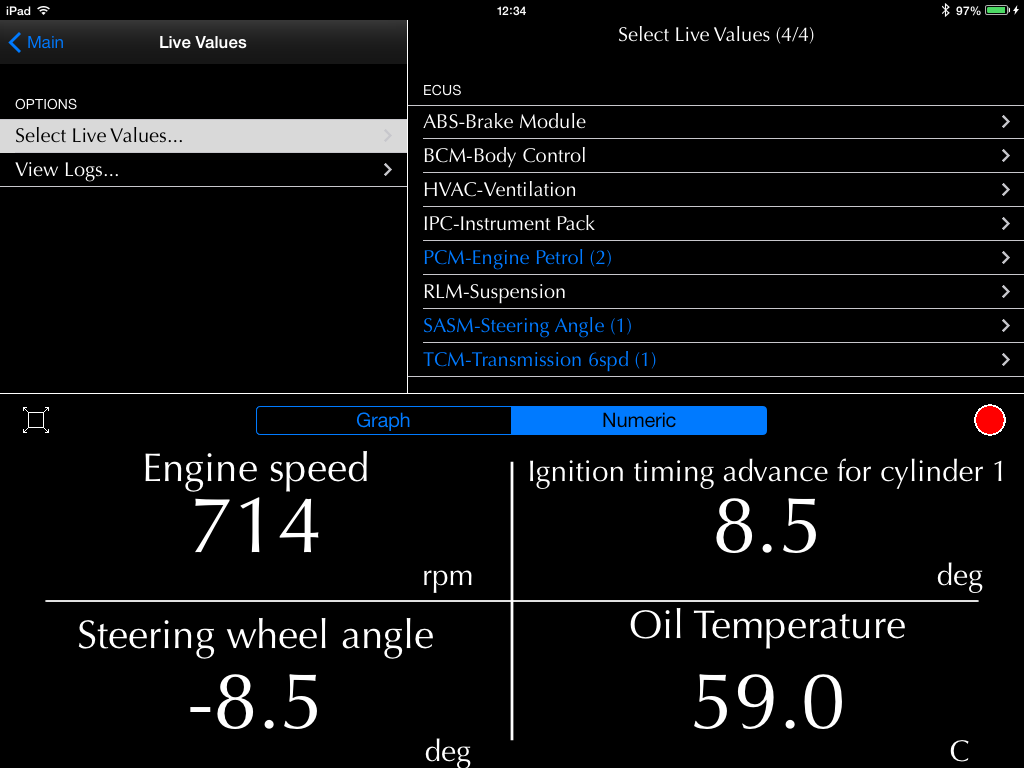

IIDTool Live Value Numeric Display Discovery 3

In addition to using the regular integrated interface, the IIDTool Pro and IIDTool BT fitted with a Bluetooth Smart module can be connected to a mobile device. This interface allows for more in-depth diagnostic capabilities and added functionality. Currently supported devices are:

  • iPad Mini, all
  • iPad 3rd generation onward
  • iPhone 4S onward
  • iPod Touch 5 onward
  • Android devices fitted with a Bluetooth V4.0 transceiver and running on Android 4.3 or higher. Low cost generic devices rarely work.

Using the latest release (non Beta) version of iOS and Android is strongly recommended.

Computer interface:
The alternate PC interface is available in case the integrated or mobile interfaces are not available. It replicates the integrated interface.

The IIDTool extensive coverage made it the prominent diagnostic tool amongst the Land Rover community

In turn, being an IIDTool owner gives access to this large and helpful community

Features



Full Diagnostic Capability
Advanced Programming Functions
Exclusive Content (see FAQ)
Multi-Vehicle Platform Support
Integrated Interface
iOS/Android App
Engine Tuning, EGR Patching and more (Purchased seperately***)
Updates

IIDTool

Full Diagnostic Capability
Advanced Programming Functions : Vin-Locked
Exclusive Content (see FAQ) : Vin-Locked

Integrated Interface

Engine Tuning, EGR Patching and more (Purchased seperately***)
Updates: Free

IIDTool BT

Full Diagnostic Capability
Advanced Programming Functions : Vin-Locked
Exclusive Content (see FAQ) : Vin-Locked
Multi-Vehicle Platform Support
Integrated Interface
iOS/Android App
Engine Tuning, EGR Patching and more (Purchased seperately***)
Updates: Free

IIDTool Pro

Full Diagnostic Capability
Advanced Programming Functions
Exclusive Content (see FAQ)
Multi-Vehicle Platform Support
Integrated Interface
iOS/Android App
Engine Tuning, EGR Patching and more (Purchased seperately***)
Updates: Subscription (500GBP/yr)

Full Diagnostic Capability

  • Fault Read / Clear of all vehicle systems
  • Service routines (including service reminder reset)
  • Live Data
  • Manual Components Activation (Output Control)
  • Calibrations (except suspension, see advanced programming functions)

Advanced Programming Functions

  • Vehicle control modules software updates (ECU Re-Flashing*)
  • Exclusive content available (modified firmware etc, see FAQ)
  • Engine tuning, EGR Patching, Speed limiter raising and more (purchased separately***)
  • Key programming (except Range Rover L322 2002-2005)

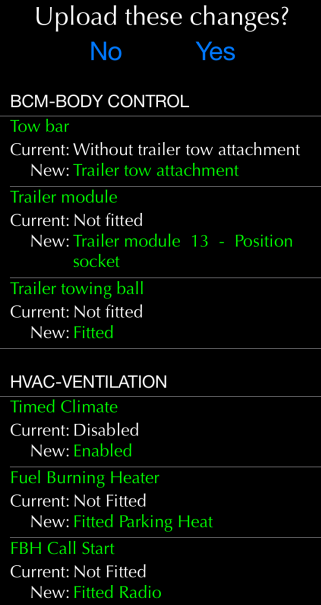

  • Car Configuration / Personalization (CCF editing, full CCF access upon request)
  • Height Adjustment (front, rear or all)
  • Suspension individual sensor calibration (needed after a repair)
  • Backup of original height and CCF values
  • 3 personalized height profiles

IOS/Android App Features

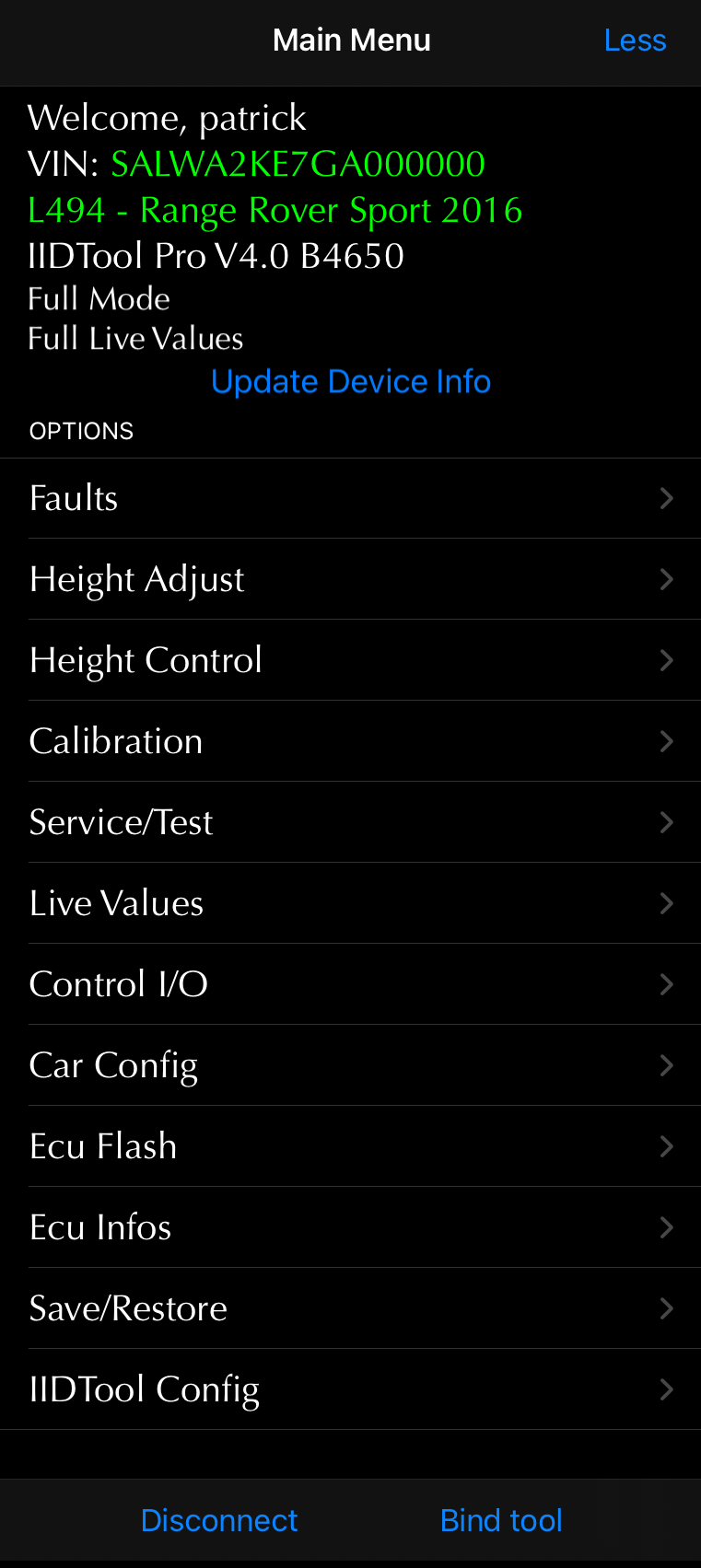

  • Easy access to all Diagnostic and Programming functions
  • Email exportation of faults, live data and ECU info
  • Real time logging of live data

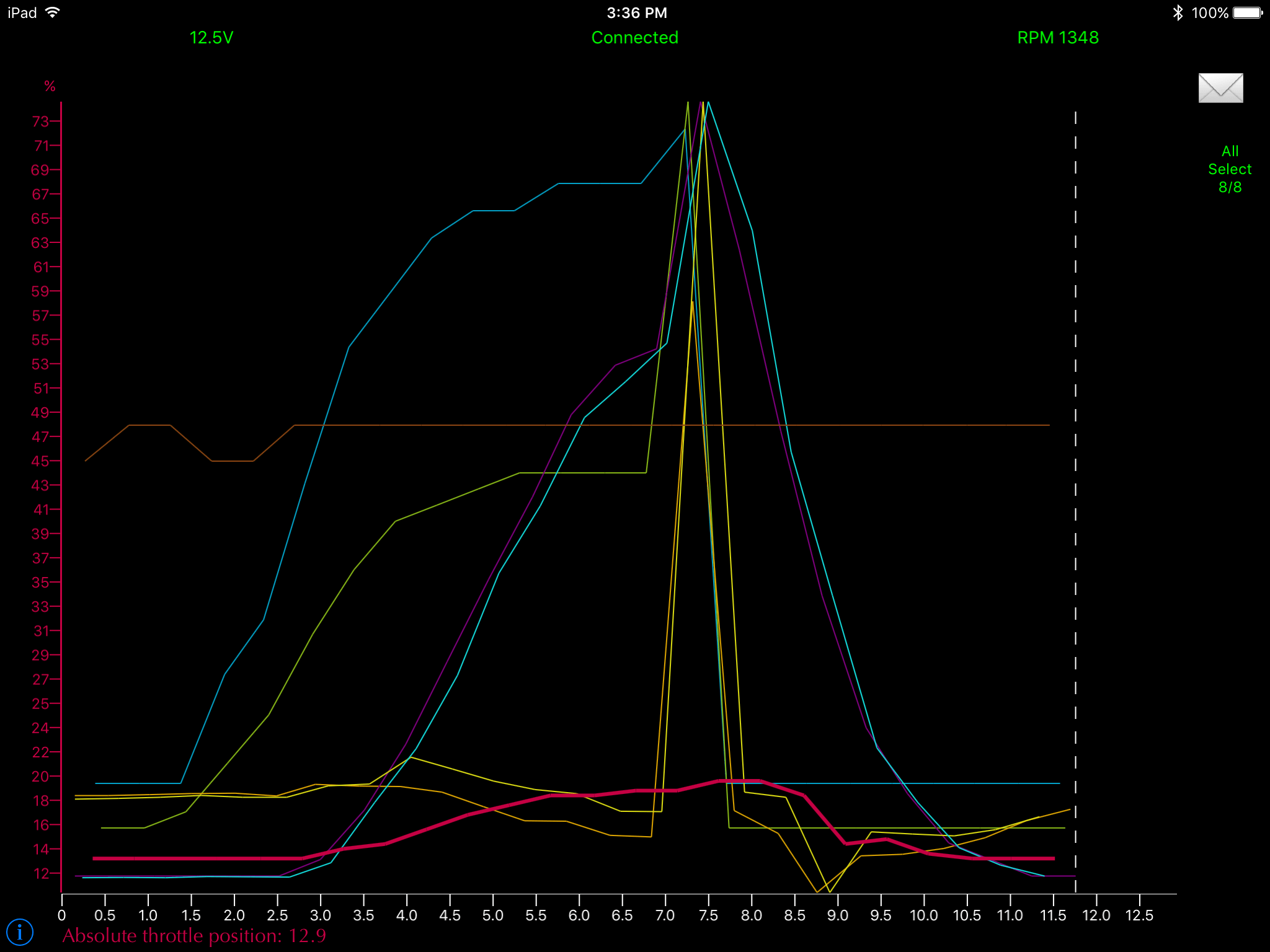

  • Up to 8 live values displayed simultaneously on graph and numerical views
  • And much more

Under Beta testing (Apple only, Android soon)

  • All live values (PIDs) available for all ECUs
  • Complete Car Configuration File (CCF) access upon request, free of charge
  • Guided suspension calibration algorithm which eliminate the need for a level surface, calculations and is done in 5 minutes

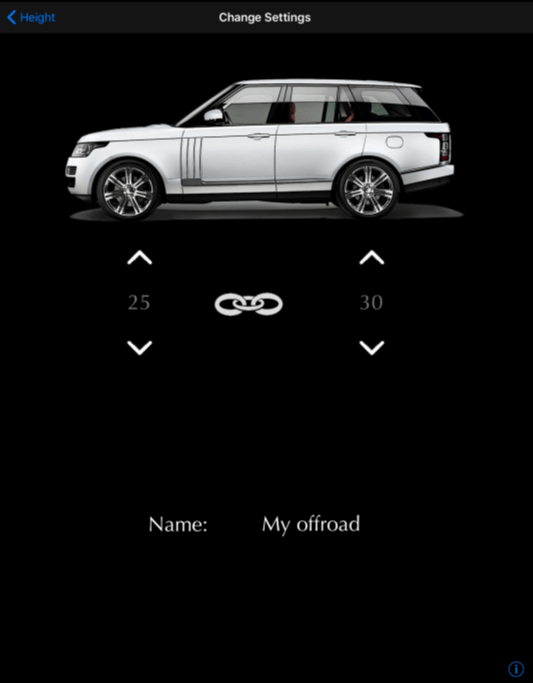

  • Height Adjust screen with saved profiles and default height available in 2 clicks
  • Height Control screen which allows height mode selection remotely and lower to bumstops feature
  • Enhanced ECU Info function allowing to see if an ECU is up to date or if an update is available
  • Jaguar support, 2008 and up vehicles
  • And more

VIN-Locked: Both the regular and BT IIDTools come with one free VIN License. Additional licenses are available in the shop section.

Functionality list

Select your vehicle to see detailed functions

Note: This table is currently being worked on to be up-to-date. Some information will be missing or may be incorrect.



Access to the complete CCF list is available upon request for BT and Pro. All live values for all ECUs are available upon request for BT and Pro.

Vehicle Coverage



Defender L316 2007-2015
Discovery 3/LR3 L319 2004-2009
Discovery 4/LR4 L319 2010-2016
Discovery Sport L550 2014-2017
Freelander 2/LR2 L359 2007-2014
Range Rover Evoque L538 2011-2016
Range Rover L322 2002-2005
Range Rover L322 2006-2009
Range Rover L322 2010-2012
Range Rover L405 2013-2016
Range Rover Sport L320 2005-2009
Range Rover Sport L320 2010-2013
Range Rover Sport L494 2014-2016

IIDTool BT and Pro

Defender L316 2007-2015
Discovery 3/LR3 L319 2004-2009
Discovery 4/LR4 L319 2010-2016
Discovery Sport L550 2014-2017
Freelander 2/LR2 L359 2007-2014
Range Rover Evoque L538 2011-2016
Range Rover L322 2002-2005
Range Rover L322 2006-2009
Range Rover L322 2010-2012
Range Rover L405 2013-2016
Range Rover Sport L320 2005-2009
Range Rover Sport L320 2010-2013
Range Rover Sport L494 2014-2016

IIDTool

Defender L316 2007-2015
Discovery 3/LR3 L319 2004-2009


Freelander 2/LR2 L359 2007-2014
Range Rover Evoque L538 2011-2016


Range Rover L322 2010-2012
Range Rover L405 2013-2016




* Firmware upgrades are completed via the internet / USB and are free of charge for regular IIDTool and IIDTool BT.

For the IIDTool Pro, updates are free for a period of one year after the date of purchase. Afterwards, firmware updates will be available for an annual fee of 500 GBP. The IIDTool Pro firmware will be continually improved through the addition of new service routines, vehicle enhancement options (modified ECU firmware’s etc), convenience features, new vehicle coverage and many more items. The annual fee will be adjusted once the product has matured and updates become less frequent. This annual fee is not mandatory; if you decide not to partake in this offer the tool will continue to function normally even without the latest firmware additions.

Flashing of new ECU’s and ECU re-flashing is supported. For a list of supported ECU re-flashes, consult the functionality list and user manual. More ECU files will be added and available by purchasing an additional module except for the IIDTool Pro (included in the yearly subscription).

** Pre 2010 vehicles: The Nav On Move (destination entry while on the move by the passenger) enabling procedure is available. Not available for 2010 and up vehicles.

***Additional tuning services provided by Bell Auto Services (BAS Remaps) and delivered by the IIDTool. Additional charges apply.
